Guide on Windows Admin Center (2025)
- Avijit Dutta
- Aug 6
- 5 min read
Published on: August 07, 2025
Author: Avijit Dutta
Category: Windows Server 2025 | Microsoft | IT Infrastructure
🚀 Introduction - Guide on Windows Admin Center (2025)
System administration has evolved beyond MMC consoles and RDP sessions. Enter Windows Admin Center (WAC) — Microsoft's modern, browser-based toolset for managing Windows Servers, Hyper-Converged Infrastructure (HCI), and client machines.
Whether you're managing a hybrid infrastructure, migrating workloads to Azure, or improving on-premises operations, WAC offers a centralised, secure, and intuitive interface that every sysadmin should master.
This Guide on Windows Admin Center (2025) explains all about its features and functions in your IT environment.
🧠 What is Windows Admin Center?
Windows Admin Center (WAC) is a lightweight, browser-based tool developed by Microsoft that provides a unified management interface for:
Windows Server (2012 R2 and later)
Windows 10/11 clients
Azure-integrated features
Failover clustering & HCI
Network and storage configuration
Hyper-V virtual machines
Unlike traditional tools like Server Manager or RSAT, WAC doesn’t require internet access or Azure, but integrates easily when needed.
✅ Key Benefits of Windows Admin Center
No agent installation required
Centralised management via modern UI
Secure gateway via role-based access
Azure hybrid integration (Azure Monitor, Backup, Update Management)
Hyper-converged infrastructure (HCI) insights
Custom extension support
Windows Admin Center (WAC) is a free product, and there are no additional licensing costs associated with using it.
📦Types of Deployment
Local client | Gateway server | Managed server | Failover cluster |
Install on a local Windows 10 or 11 client that has connectivity to the managed servers. Great for quick start, testing, ad-hoc or small scale scenarios. | Install on a designated gateway server and access from any client browser with connectivity to the gateway server. Great for large-scale scenarios. | Install directly on a managed server for the purpose of remotely managing the server or a cluster in which it's a member node. Great for distributed scenarios. | Deploy in a failover cluster to enable high availability of the gateway service. Great for production environments to ensure resiliency of your management service. |
⚠️Warning
Microsoft don't recommend using Windows Admin Center for local management of the same server on which it’s installed. To manage a server, use Windows Admin Center to connect to the server remotely from a management PC or other server. Installing Windows Admin Center on a Domain controller is not supported. Read more about domain controller security best practices
Note: Refer Microsoft Learn Article for more installation information.

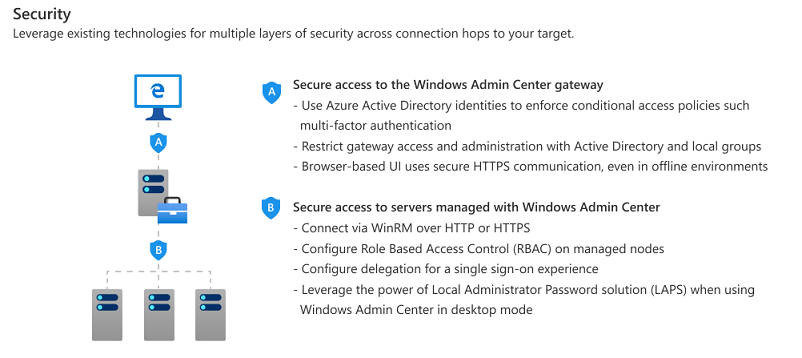

🔐Security
Windows Admin Center (WAC) offers a secure, centralised management interface with built-in Role-Based Access Control (RBAC), enabling fine-grained delegation of administrative tasks. It supports integration with Azure Active Directory for identity management and conditional access, and enforces gateway-level authentication to ensure only authorized users can access specific tools, server nodes, or management functions—ensuring full alignment with least-privilege and zero-trust security principles.
🛠️ Prerequisites for Installation
Before you install Windows Admin Center, ensure the following:
Requirement | Details |
Supported OS | Windows 10 (1809+) or Windows Server 2016/2019/2022 |
.NET Framework | 4.7.2 or later |
PowerShell | Version 5.1+ |
RAM | Minimum 2 GB |
Network | Access to managed nodes (WinRM ports open: 5985/5986) |
Admin Privileges | Required for installation and configuration |
📥 Step 1: Download Windows Admin Center
Visit the official Microsoft page: https://aka.ms/WACDownload
Download the latest MSI installer for WAC.
Verify the digital signature to ensure authenticity.
💻 Step 2: Install Windows Admin Center
Double-click the MSI file to begin installation.
Choose “Gateway mode” (Recommended for multi-node environments).
Set the port (default is https://<hostname>:6516)
Install a trusted SSL certificate (or use a self-signed certificate for testing)
Finish and launch the WAC web interface.
Pro Tip: Use a custom DNS name with HTTPS binding for easier access in enterprise environments.
🔐 Step 3: Configure Access Control
Navigate to Settings → Access
Choose between Windows Admin Center RBAC or Local Group-based access
Add user groups like Domain Admins or custom AD groups
Restrict access to certain servers or features
🖥️ Step 4: Add and Manage Servers
Go to “+ Add” → “Add Server Connection”
Choose the target (Windows Server, Failover Cluster, HCI, etc.)
Provide server name or IP address
Authenticate using Kerberos or Local credentials
Once added, the server appears in your dashboard
⚙️ Step 5: Explore Management Tools
Windows Admin Center offers built-in modules for:
Tool | Functionality |
Server Manager | Event Viewer, Services, Scheduled Tasks, Registry Editor |
Hyper-V | Manage VMs, checkpoints, and VM networking |
Storage | Manage volumes, disks, and storage spaces |
Remote Desktop | In-browser RDP to the target server |
PowerShell | Execute remote scripts in-browser |
Use the Extension Manager to add more modules like:
Azure Backup
Azure Update Management
Windows Defender ATP
☁️ Step 6: Integrate with Azure (Optional)
Go to Settings → Azure and sign in with your tenant admin account.
Enable services like:
Azure Arc
Azure Site Recovery
Azure Monitor
Azure Security Center
This hybrid approach ensures business continuity, compliance, and disaster recovery.
📈 Step 7: Monitor & Troubleshoot
Use Performance Monitor for CPU, RAM, IOPS, and NICs
Event Viewer for deep diagnostic logs
Updates for patch management and pending reboots
Task Scheduler to view and modify scheduled jobs
🔄 Step 8: Automate with PowerShell
Every WAC operation can be extended via PowerShell. You can:
View generated scripts for actions
Export configuration tasks
Use remoting to manage servers at scale
📦 Step 9: Backup and Update WAC
Backup the WAC config using Export-WacConfig (available from CLI)
Keep WAC up to date via Extension Manager or re-run the MSI installer
🛡️ Step 10: Security Best Practices
Always use trusted SSL certificates
Restrict access using Just Enough Administration (JEA)
Monitor login attempts and audit logs
Enable Azure Security Center integration
Use Multi-Factor Authentication via Azure AD (if integrated)
🧩 Advanced: Deploy WAC in High Availability (HA)
To scale Windows Admin Center across teams:
Deploy on a Windows Server Failover Cluster
Use a shared certificate and shared storage
Use Azure Load Balancer or NLB for redundancy
💼 Common Use Cases of Windows Admin Center
Windows Admin Center (WAC) is a versatile, all-in-one platform built to simplify and modernize your IT operations. Here are some powerful scenarios where WAC shines:
✅ 1. Simplified Server and Cluster Management
Manage your Windows Servers and clusters effortlessly using a modern web-based interface that brings the familiar functionalities of Server Manager into a centralized dashboard.
Get up and running in under five minutes
No agents or additional configuration required
Manage local or remote servers right out of the box
🔗 Learn more: What is Windows Admin Center?
☁️ 2. Seamless Hybrid Cloud Integration
Extend your on-premises infrastructure into the cloud by integrating with Azure services directly from Windows Admin Center.
Connect servers to Azure Monitor, Backup, Security Center, and more
Enable Azure Arc to manage non-Azure systems
Bridge your hybrid IT strategy with ease
🔗 Explore: Azure Hybrid Services
🧱 3. Streamlined Hyper-Converged Infrastructure (HCI) Management
Easily manage your Azure Stack HCI or Windows Server-based HCI clusters with a dedicated set of tools in WAC.
Deploy and manage virtual machines effortlessly
Monitor performance of Storage Spaces Direct volumes
Configure Software-Defined Networking (SDN) and scale workloads
🔗 Details: Manage HCI with WAC
Note: You can view Microsoft Cloud YouTube Channel for more information
🖨️ Printable One Page Poster
Microsoft has designed a very good one-page poster for your quick reference guide — ready to print and pin!
You can download the PDF file from the link below, or access it directly from the Microsoft GitHub site.
📚 Conclusion
Windows Admin Center is a powerful, modern management solution for Windows environments. From daily server management to cloud integration, WAC equips system administrators with tools to work faster, safer, and smarter.
Whether you’re managing a single server or a hybrid Azure-connected infrastructure, Windows Admin Center should be part of your sysadmin toolkit in 2025 and beyond.
☕ Found this helpful? Share it & show some love!
Tip me a coffee at 👉 paypal.me/duttaavijit #ThankYou #SupportCreators
Your small support helps fuel more free, volunteer-driven content like this. Thank you! 🙏
